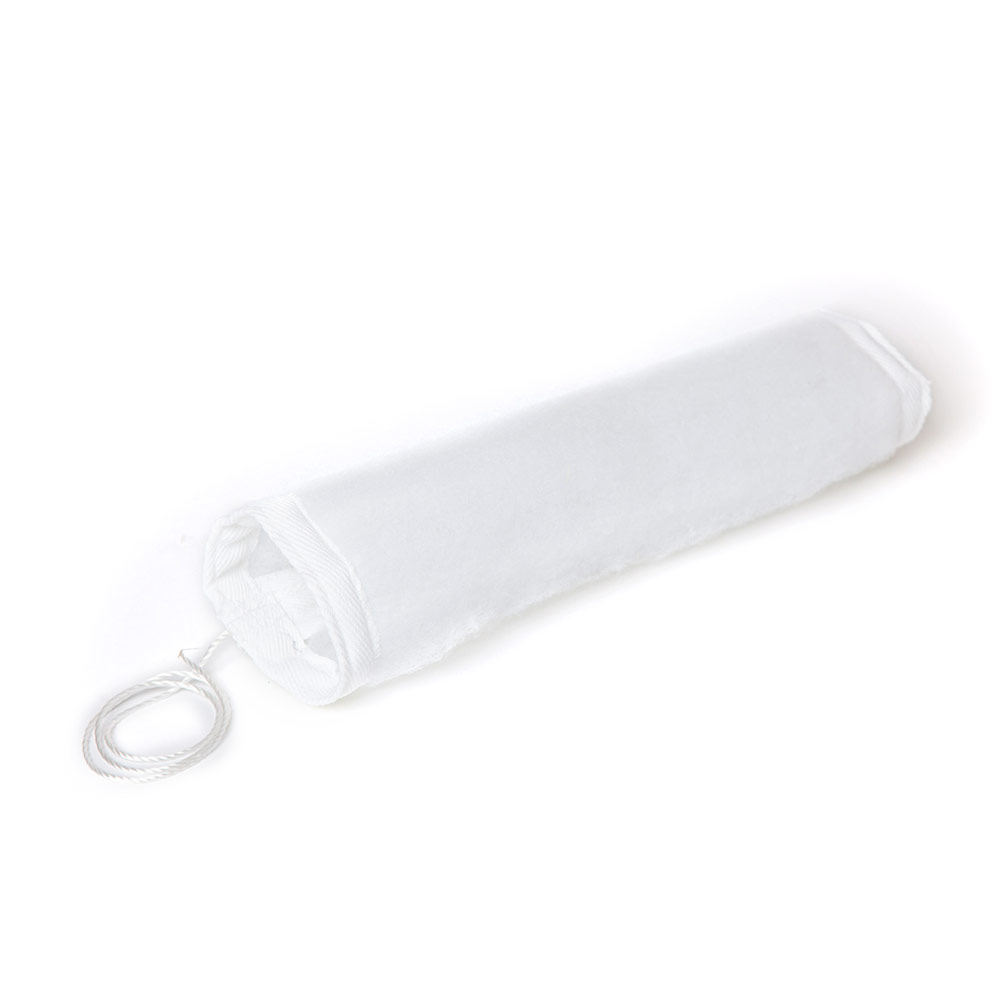

About Carbon Trap
The Carbon Trap is an innovative approach to pollution control and has been designed to filter out harmful particles produced by today's generators. Made from premium materials and user tested, it's robust enough to operate effectively regardless of the weather conditions.

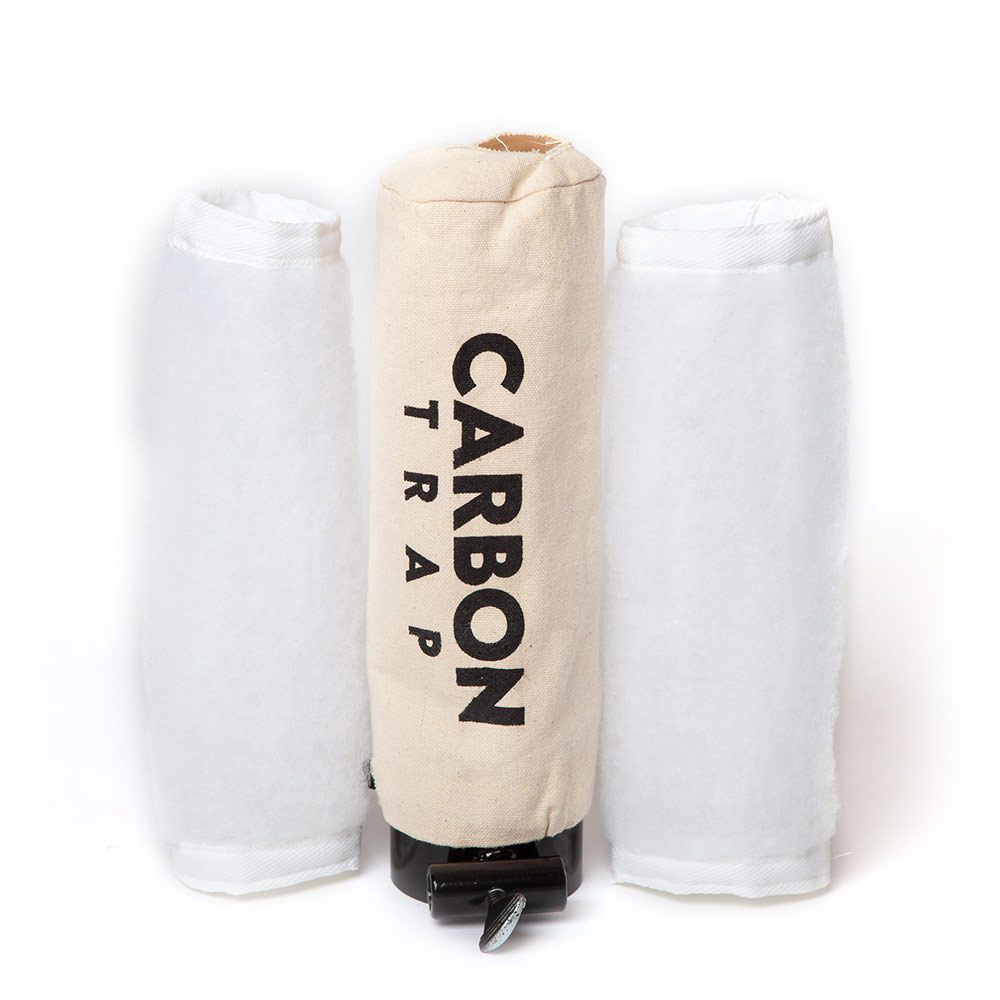

Designed to be easily assembled and disassembled, the Carbon Trap comes with its own storage and transport bag. This patent pending technology has been independently tested and was proven to be highly effective in its application.
The Carbon Trap is available in a variety of sizes to meet the needs of a variety of users. Campers, RV users, hunting and fishing camps and even industrial needs that require larger than average generator sizes can all benefit from cleaner air.
The Carbon Trap filter removes particulates such as:
Download the Scientific Report
Drop some science, and download our SEM (Scanning Electron Microscope) scientific report conducted at AGAT Laboratories.
Download Filter StudyWatch the Demo Video
Installation & Use
This gas generator exhaust filter is fully assembled and ready for use. Installation is quick and easy.

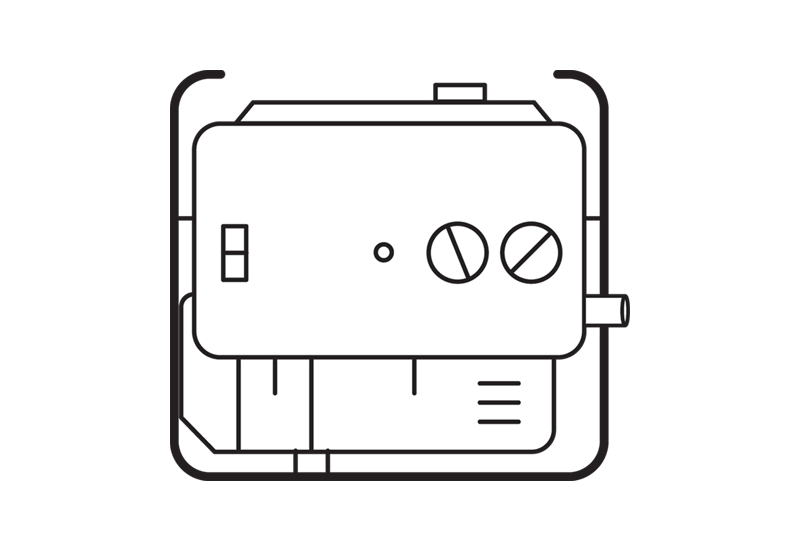

Step 1
Place generator in your desired location, and in a well ventilated area.

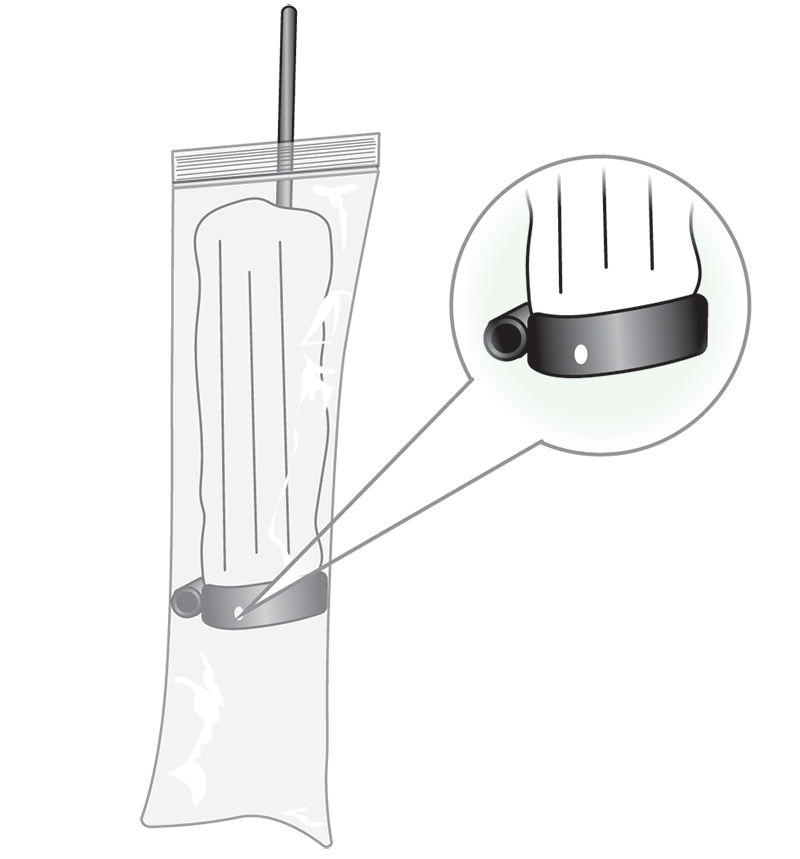

Step 2
Remove Carbon Trap from the reusable bag.
Step 3
Holding the Carbon Trap, orient the assembly so the white dot on the metal collar is facing up.

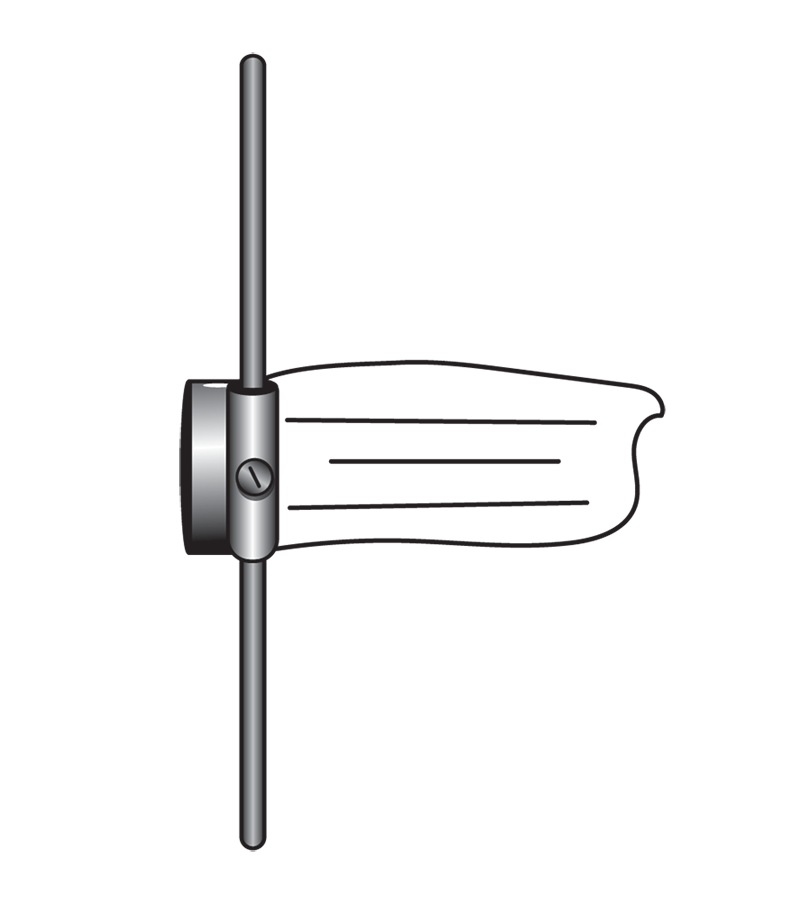

Step 4
Loosely screw the thumb screw into the threaded hole on the rod guide mounted on the side of the Carbon Trap.
Step 5
Insert the 45.5 cm rod provided approximately halfway into the rod guide. Lightly tighten the thumb screw.

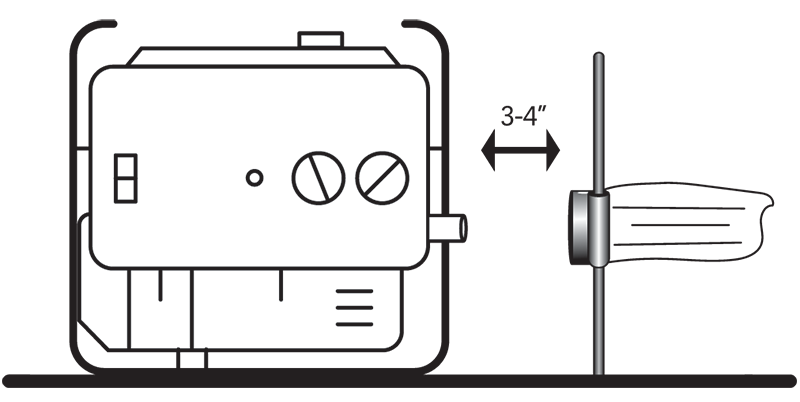

Step 6
Position the assembled rod and Carbon Trap at the exhaust port of the generator so the metal collar on the Carbon Trap is no closer than 3-4 inches away from the exhaust port. Orient the white dot on the top of the Carbon Trap to the centre line of the exhaust port.

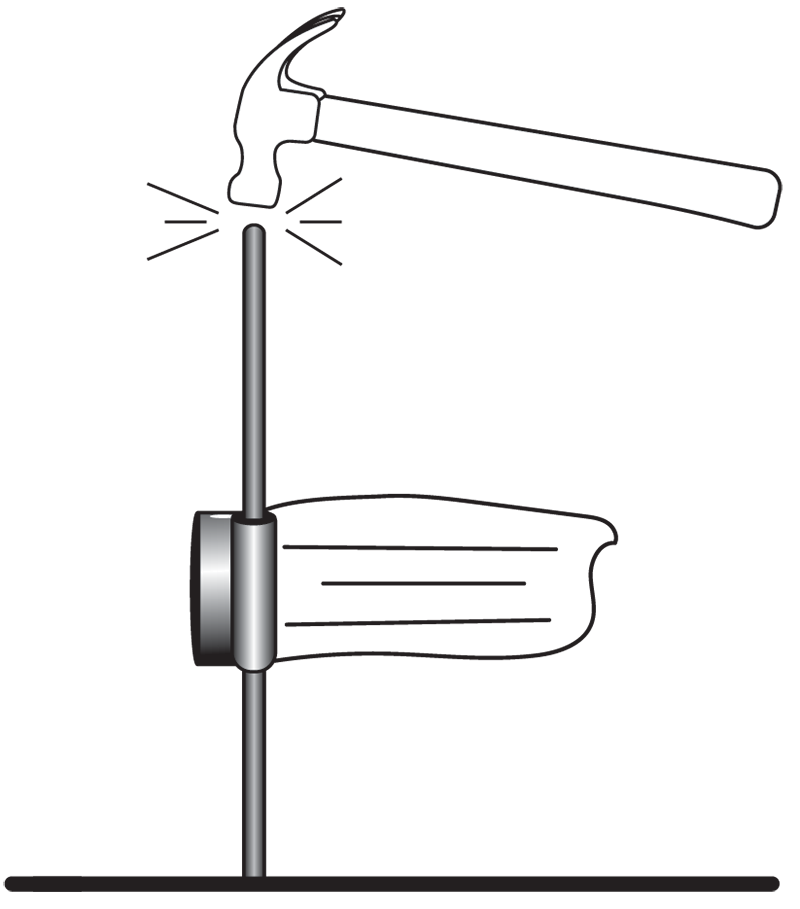

Step 7
When you are comfortable with the position of the Carbon Trap, use a hammer to tap the metal rod provided into the ground 3–4 inches.
Step 8
Loosen the thumb screw and slide the Carbon Trap along the rod to centre the collar on the Carbon Trap to the exhaust port. Tighten the thumb screw with a wrench.

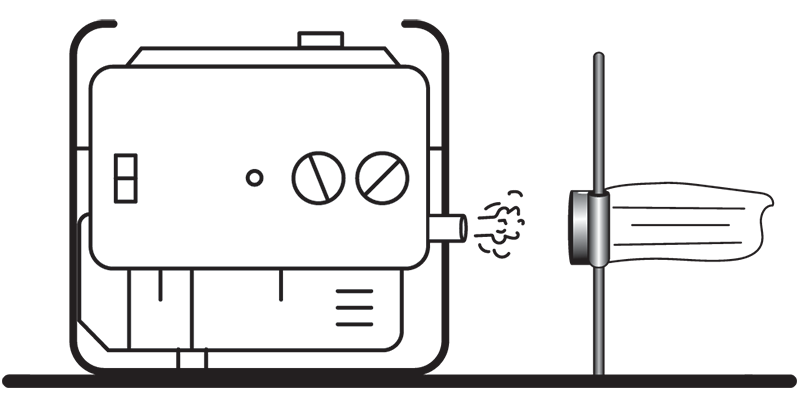

Step 9
Start the generator and ensure exhaust gases are traveling directly down the middle of the Carbon Trap and exiting out unobstructed. Further adjustment may be needed to achieve full efficiency.
